AUBT6 Bell Transformer

Superior K | Bell Transformer
Function and Feature
Transfering the voltage to a safer control voltage( ≤ 24V),
Secondary short circuit protection by means of a PTC.
(low control voltagereduced the risk of electrocution due to environmental circumstances eg.: high degree of humidity like outdoors, in a swimming pool compel, etc.).

Complete noiseless operation.
Full power available at all secondary voltages 4V,8V,12V,24V
Terminals equipped with captive Pozidriv screws, more safety

Contact Us

Technical Data

Supplying power to a bell circuit (Bells, Buzzers, Door Locks, etc)
Supplying power to the control circuit (impulse switches, relays or contactor for the purpose of control lighting & heating, etc.)
Used in distribution board, DIN enclosures, and modular device extension box

Type   AUBT6
Rated Voltage V 230/240
Rated Frequency Hz 50/60
Electrical Strength kV 4
Protection Degree   IP20
Consumption W ≤2.0 ≤3.1
Rated Output Current A 1.15 1.55

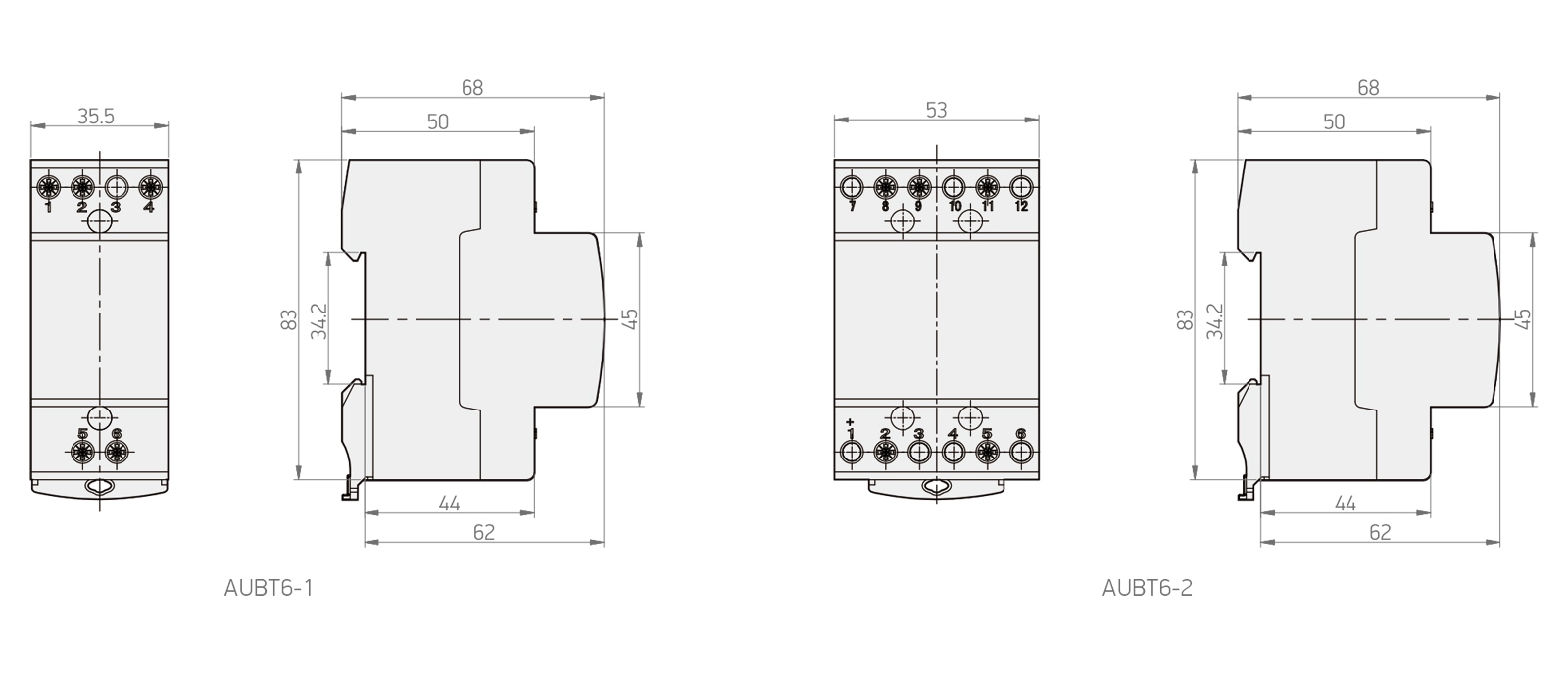

Dimensions(mm)
