KLS 10kA Add-on RCBO

Combined protection against overcurrent (overload and short circuit) and protection against earth leakage currents

Help sensing faults and trip the circuit ensuring complete protection of the people and the connected equipment

Wide choice of product codes to cover main customer needs

Time saving in wiring operation and easy trouble shooting on the network and reduced downtime for maintenance

Rated Current (In)		A	6, 10, 13, 16, 20, 25, 32, 40, 50, 63
Rated Voltage (Ue)		V	230/240, 400/415

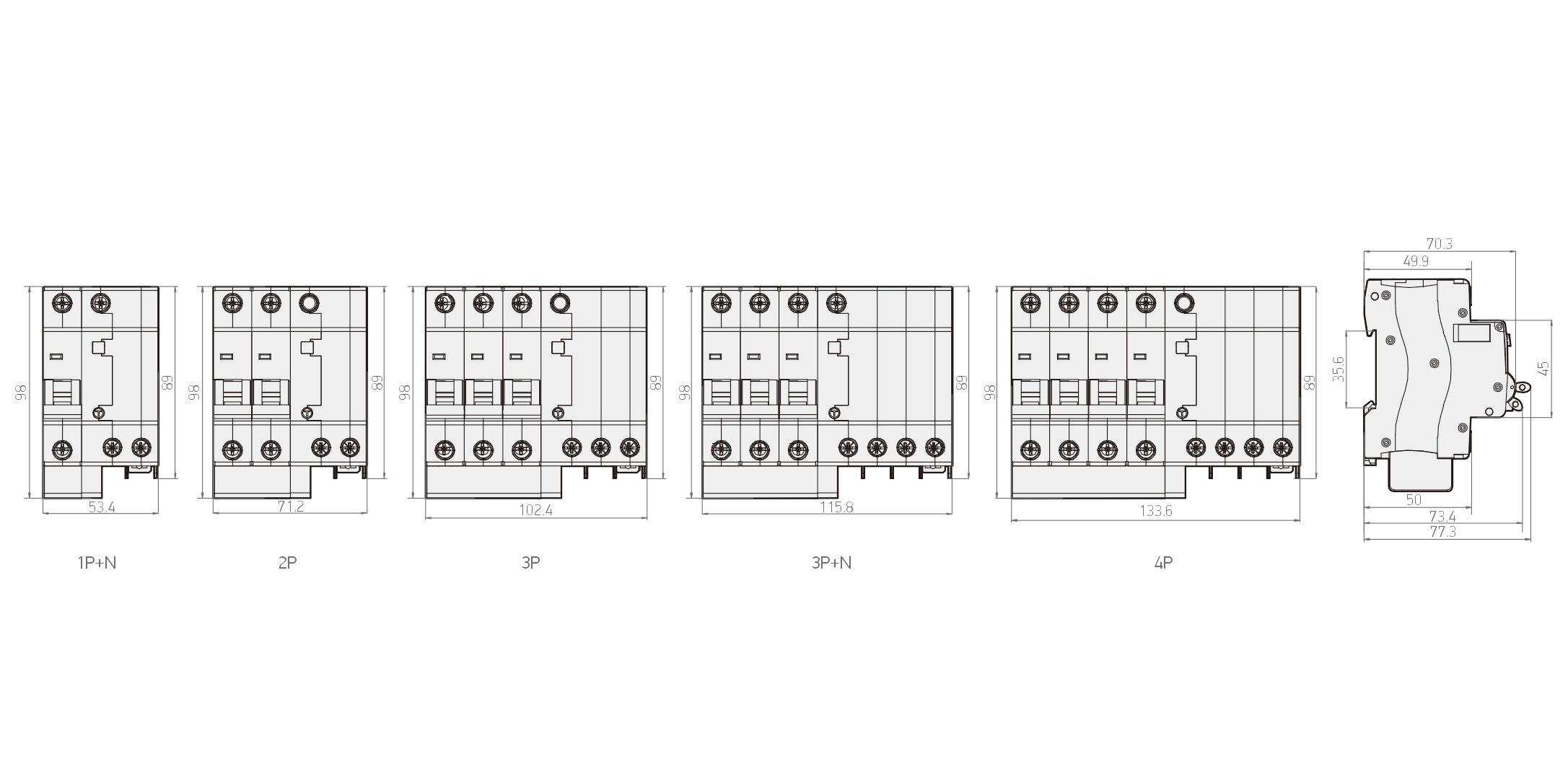

Number of Poles			1P+N, 2P, 3P, 3P+N, 4P
Rated Breaking Capacity	Ultimate (Icu)	kA	10
Rated Breaking Capacity	Service (Ics)	kA	7.5
Rated Residual Current (IΔn)		mA	30, 100, 300
Residual Tripping Characteristics			AC, A
Rated Residual Making and Breaking Capacity (IΔm)		A	4500
Rated Frequency		Hz	50/60
IP Degree			IP20
Tripping Characteristics			B,C,D
Energy Limiting Class			-
Electrical Endurance		Cycles	4000
Mechanical Endurance		Cycles	10000
Rated Impulse Withstand Voltage (Uimp)		kV	4
Cable Termination		mm²	25
Torque Screw		N.m	2.5
Terminal			Pillar Type
