Home > Products > Superior K

AUSP-40 SPD

Superior K | Surge Protective Device
Function and Feature
Designed to protect sensitive electronic equipment connected to the installation
To protect electrical systems and equipment from Surge events by limiting transient voltages and diverting surge currents
To avoid damage to the appliances and devices connected to it whena transient occurs
To well protect human beings facilities from damages or possible harm
Contact Us

Technical Data

Rated Working Voltage of Uo V 220(1N50Hz) 380(3N50Hz)
Max. Continuous Operating Voltage (Uc) V (N-PE 255) 275 320 385 420 550 690
Nominal Discharge Current 8/20μs (In) kA 20
Max. Discharge Current 8/20μs (Imax) kA 40
Voltage Protection Level (Up) kV <1.0 <1.2 <1.5 <1.8 <2.0 <2.5 <3.0
Combination   1+0 2+0 3+0 4+0 1+1 2+1 3+1
Wiring Capacity mm² 4~16
Local Indicator   Green Indicates Normal State and Red Indicates Failure
Protection Class IP   IP20
Material   PA66
The Outer Flame Retardant Grade   Comply with UL94V-0

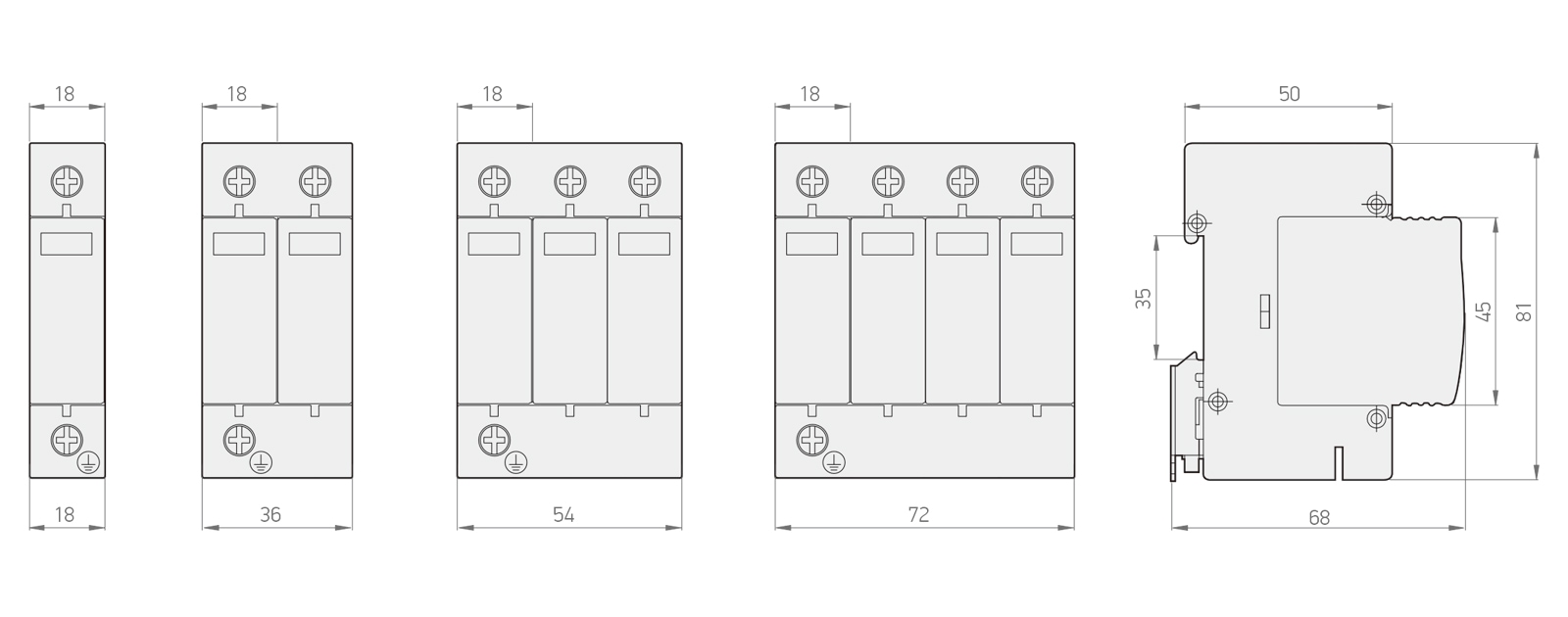

Dimensions(mm)
