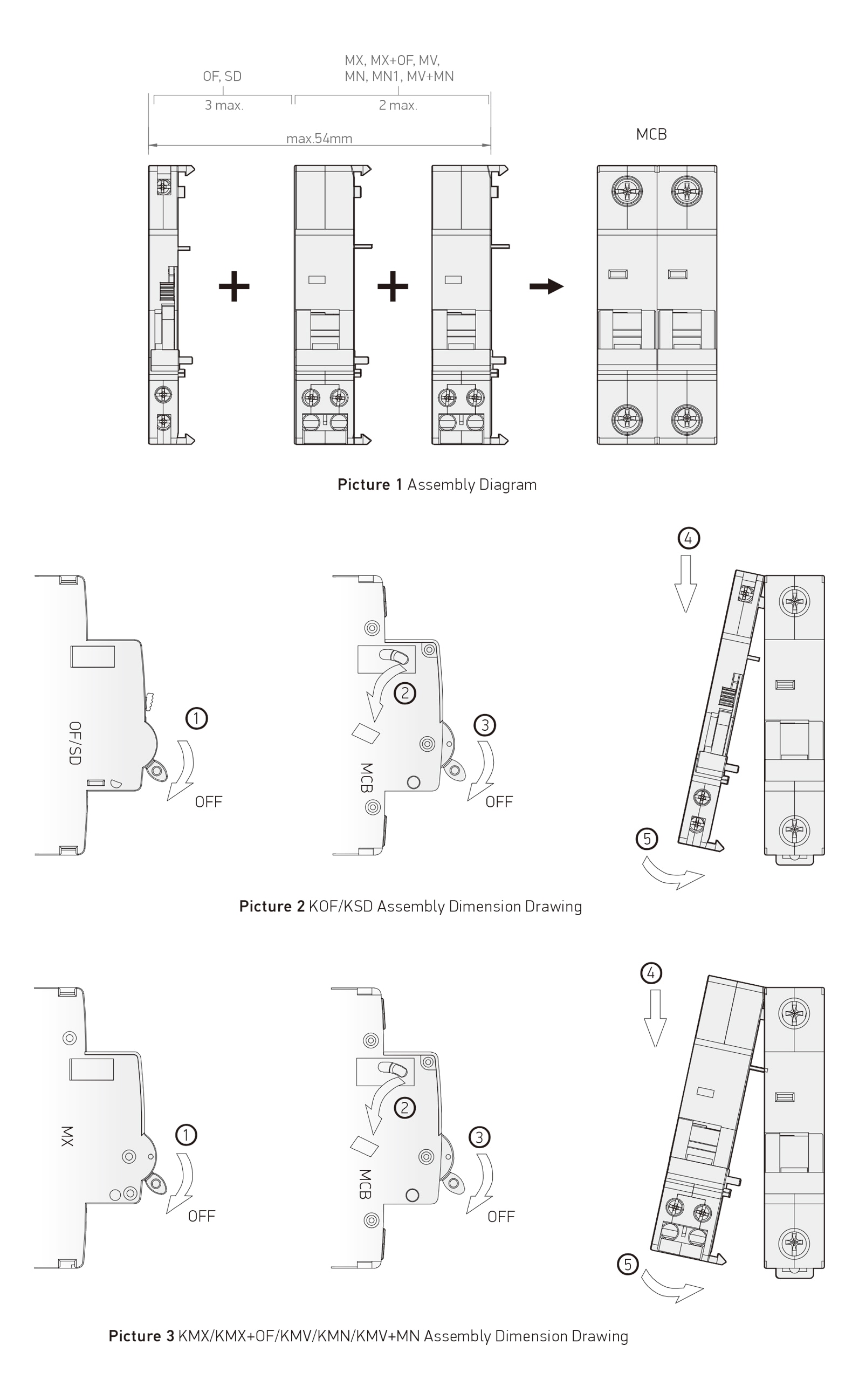

Parameters briefing are referred to the following summary and table
1. Rated Working Voltage Ue: see Table 1
2. Operating Voltage Range: see Table 1
|
Table1 |
|
|
|
Product Module Name |
Rated Working Voltage Ue(V) |
Operating Voltage Range (V) |
|
AC/DC:24V |
70%–110% of Rated Working Voltage |
KMX
KMX+OF |
AC/DC:48V |
AC:100–415V
DC:110–130V |
|
KMV |
AC:230 |
280±5% |
|
KMN |
170±5% |
|
KMV+MN |
Overvoltage: 280±5%
Undervoltage: 170±5% |
3. Rated Insulation Voltage (Ui):500V
4. Dielectric Performances:Contact can take to 200oV,1 min Power Frequency Withstand Voltage Test
5. Mechanical Endurance: 4000
6. Terminal: Pillar Type
7. Cable Connection:4mm2
8. Mounting: Din Rail
|
Table2 |
|
|
|
Category |
Rated Working Voltage Ue(V) |
Rated Working Current (A) |
|
AC-12 |
415V |
3 |
|
≤240V |
6 |
|
DC-12 |
130V |
1 |
|
48V |
2 |
|
24V |
6
|
Parameters and briefing are referred to the following
1. Used Category and different Rated Working Current under rated voltage is referring to Table 2
2. Dielectric Performances: Contact can take to 2000V, 1 minPower Frequency Withstand Voltage Test
3. Frequency: 50/60Hz
4. Mechanical Endurances for Auxiliary contact: 5000
5. Mechanical Endurances for Alarm Switch: 4000
6. Terminal: Pillar Type
7. Cable Termination: 4mm2
8. Mounting: Din Rail
